Lenovo ThinkCentre Tiny-in-One 23
Introducing The Most Versatile Commercial AiO Yet. Powered by ThinkCentre Tiny.

Features:

Tiny Modular All-in-One

Tiny was the first 1L desktop in the industry. Now we've improved upon the compact design to create a modular all-in-one desktop PC, with simple setup and enhanced security. Our Tiny-in-One is a 23-inch monitor with built-in housing for both a Tiny system and an external optical disc drive (ODD), which are secured via one single Kensington lock, and remain secure inside the system even if the cable is cut. Compatible with all current generation models, including:

• M93p Tiny
• M83 Tiny
• M73 Tiny
• M53 Tiny

Reduced Upkeep Costs

With the Tiny-in-One 23, you need only update what you need, when you need to—no worries about replacing the entire system as with traditional all-in-one desktops.

Power On

Tiny-in-One and all current generation Tiny desktops are turned on together when you press Alt + P on your keyboard. Additionally, for M83 and M53 Tiny, they can be powered on by simply pressing the power button positioned on the Tiny-in-One.

Easily Connects to Laptop

The Tiny-in-One easily connects to a laptop, and with the press of a button, you can switch sources between notebook and Tiny. Tiny-in-One also functions as a standalone monitor.

Big on Security

A single Kensington lock secures Tiny and extension ODD box together for enhanced security. Tiny-in-One is compatible with other data security features offered by Tiny, such as Smart USB Proection and Bluetooth lock.

Green Leadership

Certifications like ENERGY STAR and a 90W 87% power supply unit mean you'll save money with a more energy-efficient PC, helping the planet and your bottom line.

Views:

Lenovo ThinkCentre Tiny-in-One 23 (Click to enlarge)

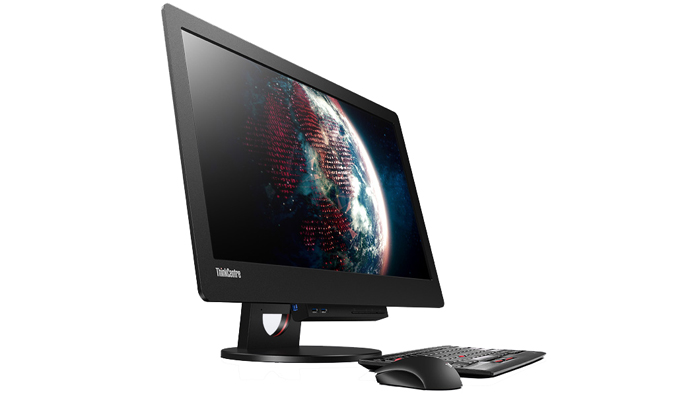

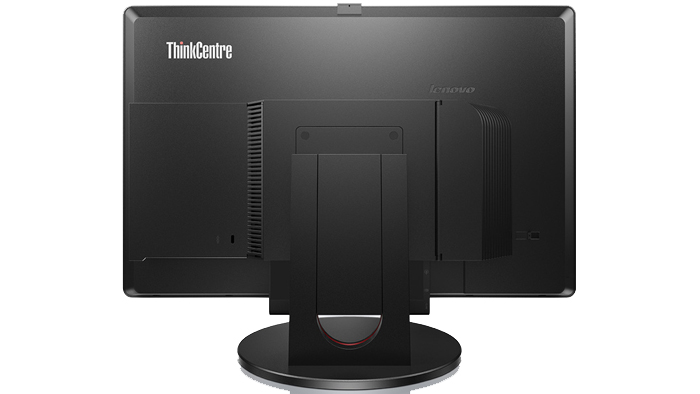

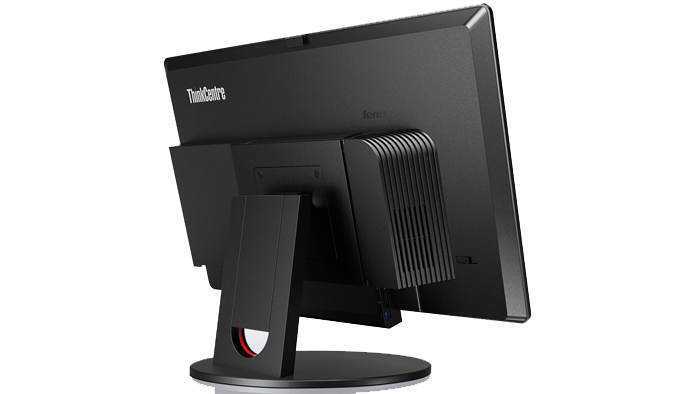

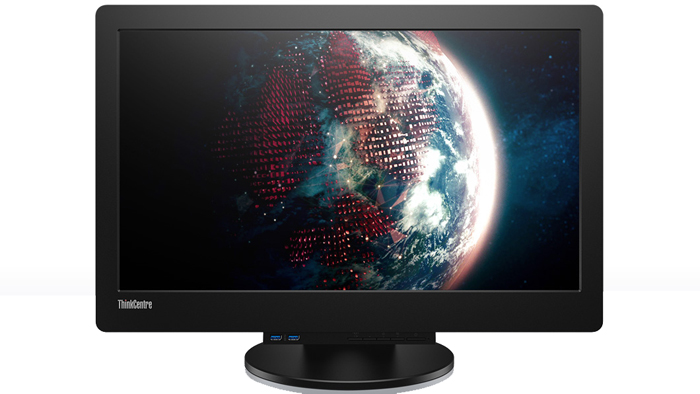

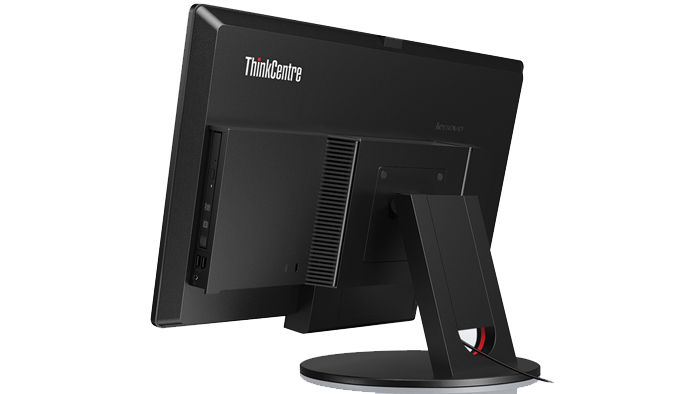

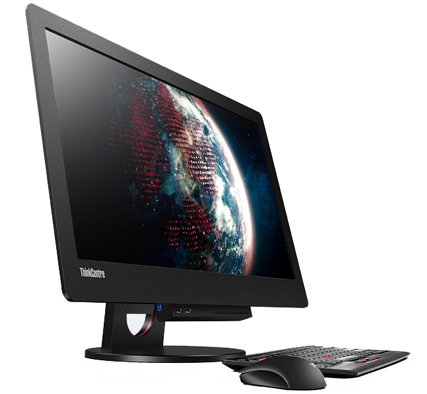

Front View	Rear View	Right View	Left Rear View

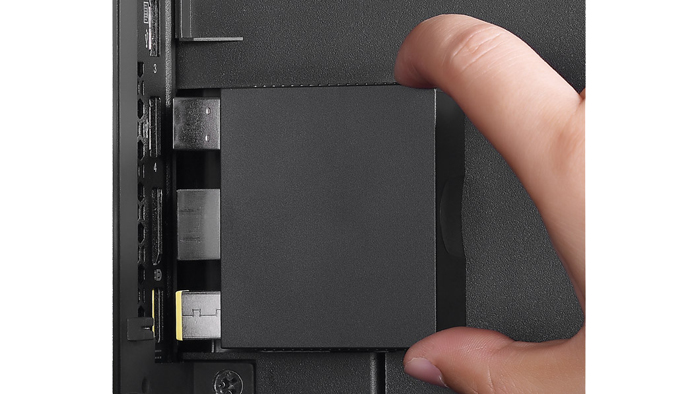

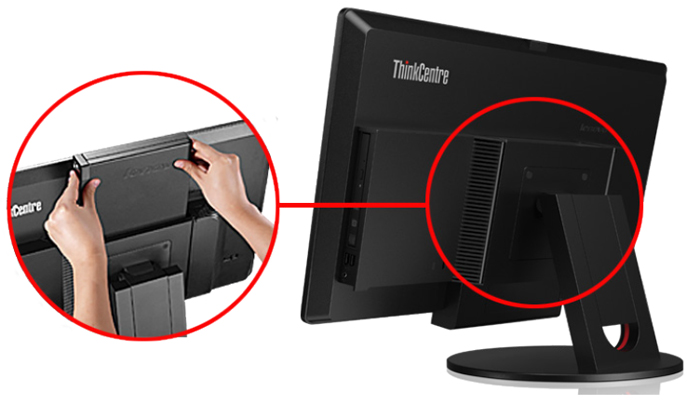

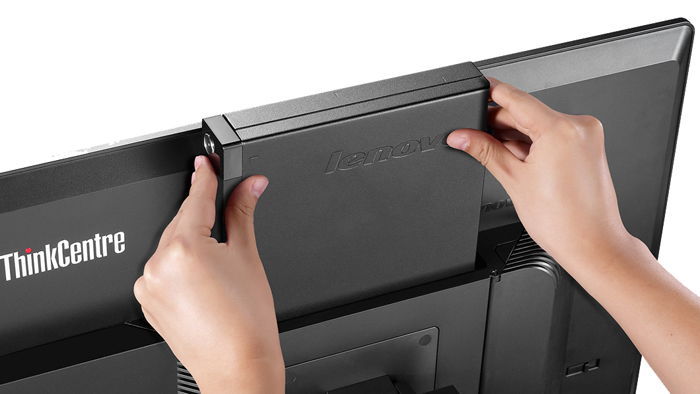

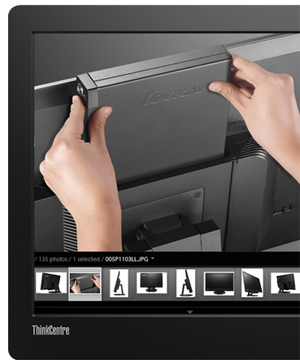

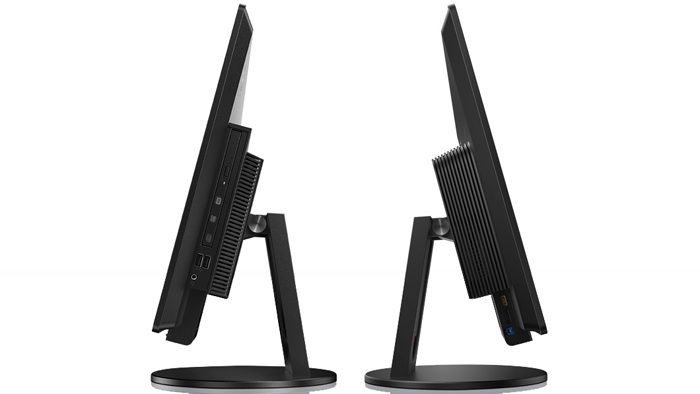

Right Rear View	Rear Detail View	Tiny System In Monitor View	Left and Right Sides View
Rear Connections View

Specifications:

Lenovo ThinkCentre Tiny-in-One 23
Performance
Processor LUT	8-bit / 6-bit
Brightness (typical)	250 cd/m
Contrast Ratio (typical)	1000:1
Viewing Angle	170o (H) 160o (V)
Response Time (typical)	5 ms
Panel Type (TN, IPS)	TN
Color Gamut NTSC (CIE1931)	72%
Numbers of Color	16.7M
Design
Display	23" Wide LED LCD (1920 x 1080)
Panel Size	23" (1920 x 1080)
Viewable Area	23" (584.2 mm)
Screen Dimensions (W x H)	20.04" x 11.27" (509.2 mm x 286.4 mm)
Aspect Ratio	16:9
Tilt Angle (front/back)	-5º / 25º
Swivel Angle (left/right)	+/-45º
Lift	110 mm
VESA Mount	Yes (100 mm)
Kensington Lock Slot	Yes
ODD	Optional
Connectivity
Ports and Slots	2 x USB 3.0, 2 x USB 2.0, 1 x mini USB 2.0 port for accessory
Audio Out	Yes (3.5 mm)
Input Selection	Exit / Left–Right (brightness) / Menu / Power

Services Offerings

Lenovo offers a comprehensive portfolio of services to support and protect your ThinkCentre investment. Focus on your customers and business, not your IT.

• Priority Technical Support^*
  Makes your priority, our priority. 24x7 priority call routing to advanced-level technicians, electronic incident tracking, and rapid response and resolution.
• Warranty Upgrades – Onsite And Next Business Day
  Maximizes PC uptime and productivity by providing convenient, fast repair service at your place of business day.
• Warranty Extensions (1-to-4 Years Total Duration)
  This fixed-term, fixed-cost service helps accurately budget for PC expenses, protect your valuable investment, and potentially lower the cost of ownership over time.

* Not available in all regions

Documentation:

Download the Lenovo ThinkCentre Tiny-In-One 23 Datasheet (PDF).
