Lenovo ThinkServer SA120
Direct Attached Storage

Lenovo ThinkServer SA120

Lenovo Storage

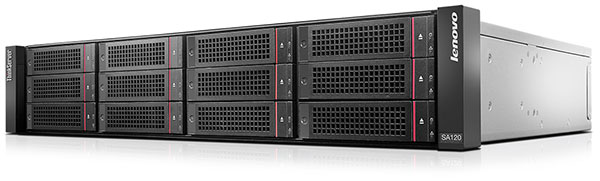

Lenovo ThinkServer SA120
ThinkServer SA120 DAS Array, 1 x PSU, 1 x I/O Controller, No Drives
#70F10000UX
List Price: $2,999.00
Our Price: $2,889.00
ThinkServer SA120 DAS Array, 2 x PSU, 2 x I/O Controllers, No Drives
#70F10001UX
List Price: $3,399.00
Our Price: $3,300.00
ThinkServer SA120 DAS Array, 2 x PSU, 2 x I/O Controllers, 6 x 2TB SAS 7.2K Drives
#70F1S00100
List Price: $3,439.00
Our Price: $3,215.00

Click here to jump to more pricing!

Overview:

The ThinkServer SA120 direct attach storage array provides high-density expansion and enterprise-grade reliability and is an ideal tiered storage solution for datacenter deployments, distributed enterprises or small businesses.

Why ThinkServer SA120?

  1. Optimal tiered storage design, with cost-effective SAS and high-performance, low latency SSD choices.
  2. Superior quality, with standard 3-year warranty and extensive Lenovo services and warranty upgrade choices.
  3. Outstanding value, with easy serviceability, tool-less features, high reliability and affordable prices.

Modular and Scalable

The ThinkServer SA120 offers enormous expansion, with twelve 3.5” SAS high-capacity frontpanel drive bays, up to two I/O controllers and four optional rear-panel 2.5” SSD drive bays to improve throughput. Coupled with ThinkServer host servers configured with LSI® CacheCade technology, these SSD drives enable the ThinkServer SA120 to provide additional cache, low latency and deliver amazing IOPS improvements. This clever, scalable design provides an optimal tiered storage layout for single- or dual-path configurations.

Customer-Focused Design

With legendary Think design, and enterprise-grade reliability, the ThinkServer SA120 provides peace of mind. Its innovative storage design combines large capacity near-line 3.5” drives and lightning-fast 2.5” drives to provide a perfect solution for customers who require high performance and maximum capacity — at a fraction of the cost and complexity of typical storage area network choices. And, as your storage demands expand, you can daisy chain up to eight* ThinkServer SA120 enclosures. Servicing the SA120 is easy with tool-less components, hot-swap fans and power supplies. It shares common parts with ThinkServer rack and tower servers for simplified management.

Impressive Features, Great Value

Featuring the latest high performance SSD choices from Intel®, ThinkServer SA120 delivers the fast response and low latency you demand. ThinkServer SA120 offers high efficiency 80 PLUS Gold redundant power supplies to keep your business running smoothly and to reduce power consumption. Plus, if you need fast, professional service help, Lenovo provides an impressive array of warranty upgrades and rapid-response services. Combining these rich features with competitive prices and a standard 3-year warranty, the ThinkServer SA120 offers an impressive value.

* Up to eight SA120 enclosures per dual port server adapter (four SA120 enclosures per port)

Specifications:

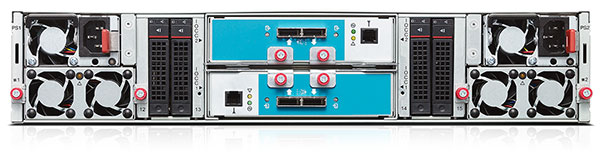

Lenovo ThinkServer SA120 - Back View

Lenovo ThinkServer SA120 Direct Attach Storage Array Specifications
I/O Module
  • Up to 2 x ThinkServer Storage Array 6Gbps I/O Modules
Storage Capacity
  • Front panel: 48TB (12 x 3.5” 6Gbps SAS)
  • Rear panel*: 3.2TB (4 x 2.5” 6Gbps SATA SSD)
  • Daisy chain up to 8 enclosures on one dual port server adapter (4 per port)
Storage Drives
  • Up to 4TB 3.5” 7.2K 6Gbps Hot-Swap SAS
  • Up to 800GB Intel S3500 2.5” SATA 6Gbps Hot-Swap SSD
  • Up to 800GB Intel S3700 2.5” SATA 6Gbps Hot-Swap SSD
Expandability
  • Maximum 128 drives on one server adapter (64 per port)
Compatible Adapters
  • ThinkServer LSI9280-8e 6Gbps SAS RAID HBA by LSI (0,1,5,6,10,50,60)
  • ThinkServer LSI9286CV-8e 6Gbps SAS RAID HBA by LSI (0,1,5,6,10,50,60)
  • ThinkServer LSI9207-8e 6Gbps SAS HBA by LSI** (JBOD only)
Power and Cooling
  • Up to 2 x 550W 80PLUS Gold, hot-swap, redundant, power supplies, Energy Star 2.0 certified
  • 2 hot-swap redundant system fan modules Additional fan in each power supply
Management
  • LSI® MegaRAID™ Storage Manager
Form Factor / Dimensions
  • 2U rack mount chassis with static rails
  • H: (mm/inch): 86.6mm / 3.409” inch
  • W: with handles: 482.6mm / 19” inch
  • D: with handles: 394.05mm / 15.513” inch
  • Weight: 16 kg (35.27lb) to 22 kg (48.5lb)
Back Panel Connectors

Each controller includes:

  • 1 SAS (SFF 8088) IN connector
  • 1 SAS (SFF 8088) Out connector
  • 1 RJ11 serial port

* Configuring 2.5” drives on rear panel requires optional ThinkServer 2.5” SATA SSD Cage with SATA Interposer (part number 4XB0F28642). ** Available Spring 2014

Pricing Notes:

Lenovo Storage
Lenovo ThinkServer SA120
ThinkServer SA120 DAS Array, 1 x PSU, 1 x I/O Controller, No Drives
#70F10000UX
List Price: $2,999.00
Our Price: $2,889.00
ThinkServer SA120 DAS Array, 2 x PSU, 2 x I/O Controllers, No Drives
#70F10001UX
List Price: $3,399.00
Our Price: $3,300.00
ThinkServer SA120 DAS Array, 2 x PSU, 2 x I/O Controllers, 6 x 2TB SAS 7.2K Drives
#70F1S00100
List Price: $3,439.00
Our Price: $3,215.00
Lenovo ThinkServer SA120 Accessories
ThinkServer 3.5” 2TB 7.2K SAS 6Gbps Hot Swap Hard Drive
#0C19531
Our Price: $459.00
ThinkServer 550W Hot Swap Redundant Power Supply
#4X20E54689
Our Price: $260.00
ThinkServer 2.5” 480GB S3500 SATA 6Gbps Hot Swap SSD
#4XB0F28617
Our Price: $1,399.00
