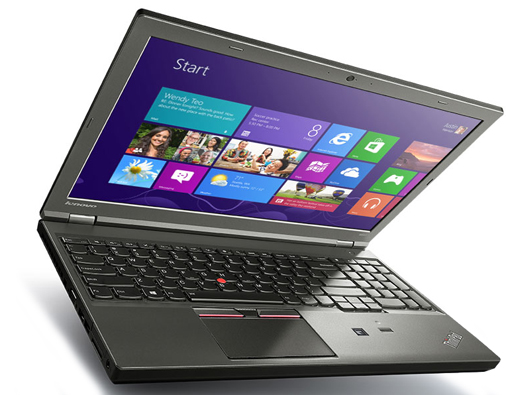

Lenovo ThinkPad W541 Mobile Workstation
Productive Power on the Move
15.6" thin & light mobile workstation, with ISV certification, stunning graphics, optional color calibration, and enhanced TrackPad.
- Thin and light, but blazing-fast and powerful
- ISV-certified on more than 100 apps
- Precise color-matching and image accuracy
- Brilliant FHD display with IPS technology
- Enterprise-level remote manageability
ThinkPad engineers have used their decades of experience and know-how to build the most powerful notebook Lenovo has ever produced; the W541. A brilliant 3k IPS display offers ultra crisp images with rich vibrant colors; top of the line 4th generation Intel quad core processors and the latest NVIDIA graphics come together in a chassis constructed of highly durable yet lightweight materials such as magnesium alloy. A Thunderbolt 2.0 port provides the fastest possible connection to peripheral devices to lower the time spent moving large files. The ability to install up to 32GB of memory will keep even the most resource-intensive applications running smoothly.
4th Generation Intel Core™ Processors
4th generation Intel Core™ processors deliver the performance to increase productivity for your business. Devices turn on in an instant and are always up-to-date. You can multitask quickly, move effortlessly between applications, and collaborate wirelessly in a high quality videoconference — all with the convenience of longer battery life. Plus, you can guard against identity theft and ensure safe access to your network with built-in security features. In fact, the only thing more amazing than an Intel Core processor-based PC is what your users will do with it.
Thunderbolt is a revolutionary connection technology that simultaneously supports high-resolution displays and high-performance data devices through a single, compact port. Simply connect the W541 to multiple displays and devices with one cable, then sync and backup at up to 10Gbps (twice the speed of USB 3.0), capture and edit multiple uncompressed video streams in real time, and daisy-chain your devices to simplify your workflow.
Optional X-Rite Integrated Color Calibrator
X-Rite PANTONE color calibration yields greater image accuracy, more precise color matching, and a consistently true display. Each individual sensor is uniquely calibrated to each individual display at the factory.
Because photographers, light CAD/CAM users, digital content creators, and other industry pros require proven performance and software stability, more than 100 applications are tested and certified by industry-leading independent software vendors.
Full-sized and spill-resistant, the legendary ThinkPad ergonomic keyboard is renowned for its full array of keys, excellent feel, and TrackPoint pointing device. It's optimized for Windows 8.1 with convenient multimedia buttons, function-lock capability, and immediate access to view apps. We've enhanced our 2015 TrackPad based on customer feedback, incorporating a larger area with three-button control. Available optional backlight makes working in dark environments effortless.
NVIDIA Optimus™ Technology
Automatically switch to your discrete graphics card only when it's needed. Get extended battery life without sacrificing high-performance graphics for applications, high-def videos, 3D views, and more.
FHD/3K Display With IPS Technology
In-Plane Switching (IPS) LCD displays with high brightness. IPS technology allows for vivid colors and nearly 180-degree viewing angles.
Intel vPro Technology
Makes enterprise-level manageability even more convenient and cost-saving. Manage, protect, repair, or locate your deployed laptops from anywhere in the world.
Stereo Speakers With Dolby Home Theater
Increased audio clarity and maximized volume output without distortion — enjoy a crisp, clear, immersive surround sound experience over built-in stereo speakers. All the power and nuance of the cinema, all the immediacy of live performance, now from your ThinkPad.

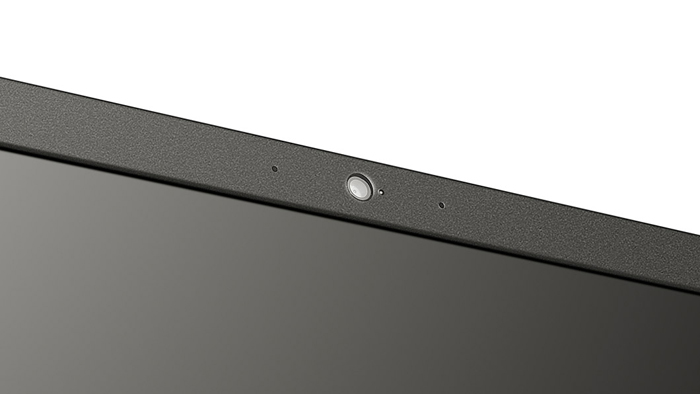

Integrated HD Webcam
Crystal-clear video, face-tracking and keystroke noise suppression technology will help you web-conference or chat like you're really there. Dual digital-array microphones ensure a premium audio experience.
Integrated Fingerprint Reader
Get quick, convenient access and secure login with one swipe.
WWAN (3G/4G) (Optional)
Add wireless WAN connectivity and go online virtually anywhere without a WiFi connection.

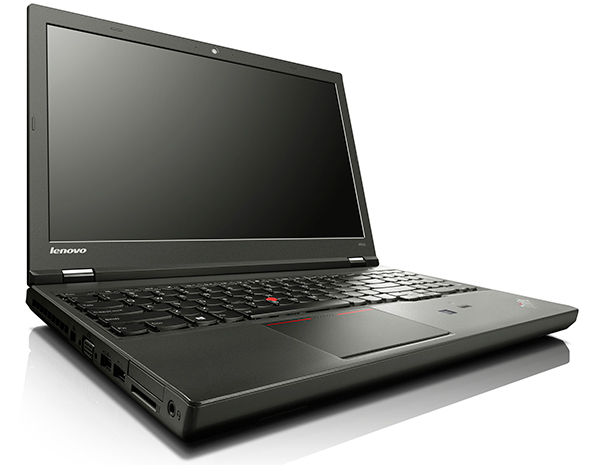

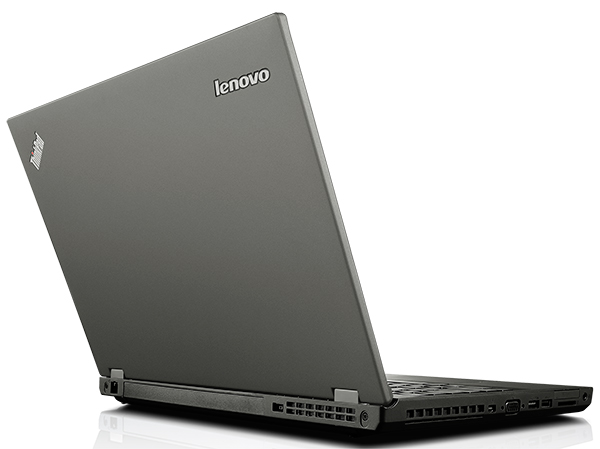

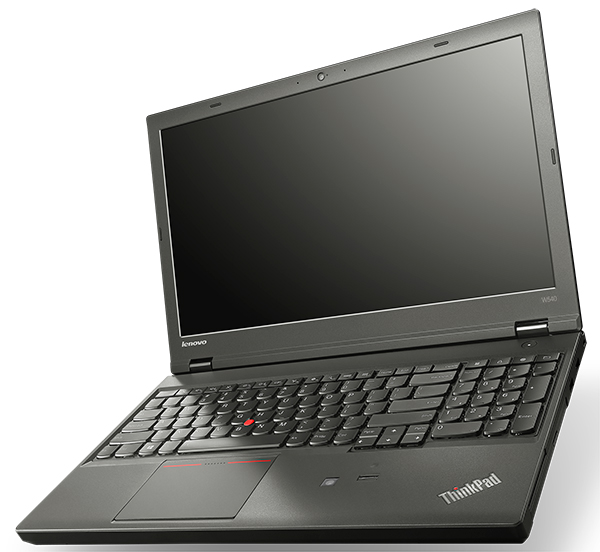

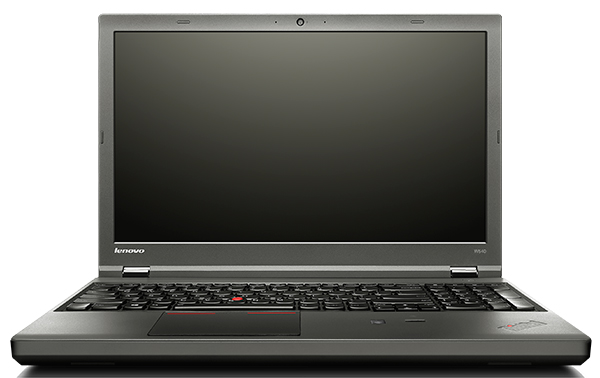

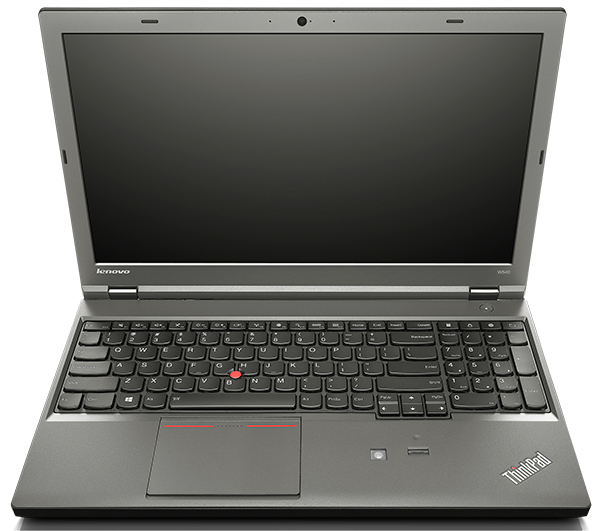

Lenovo ThinkPad W541 Laptop (Click to enlarge)

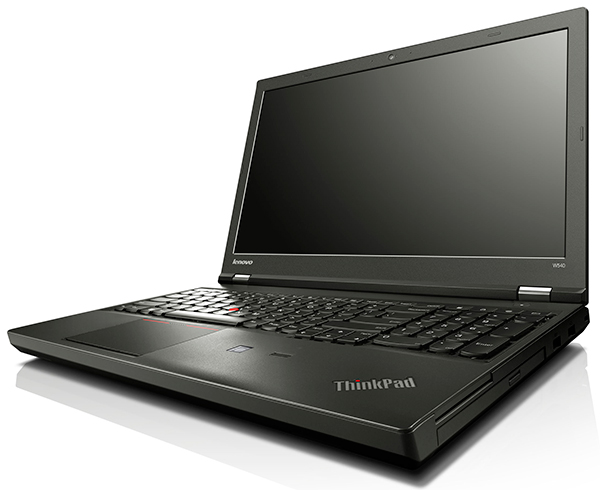

Open Left View

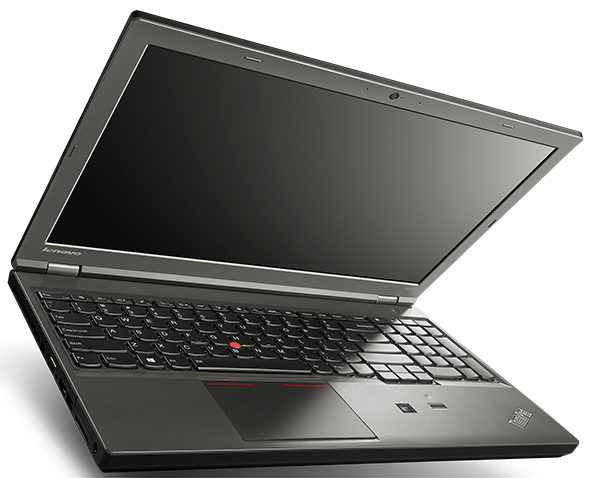

Open Right View
Open Right View

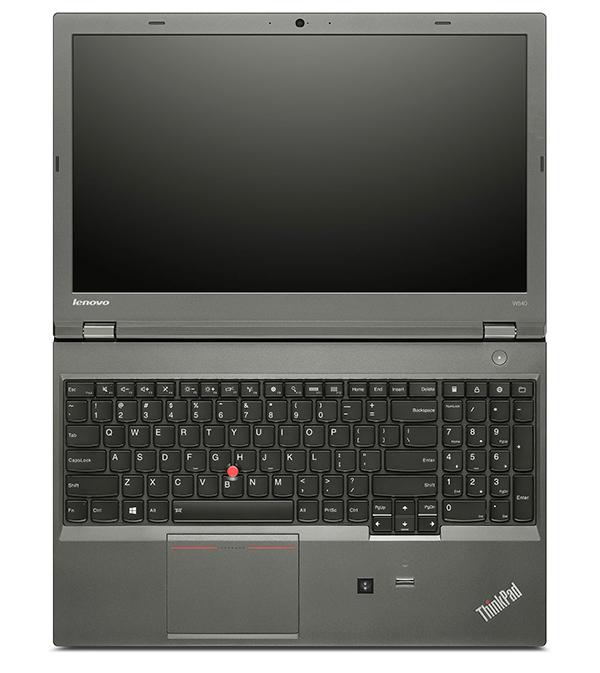

Open Flat View

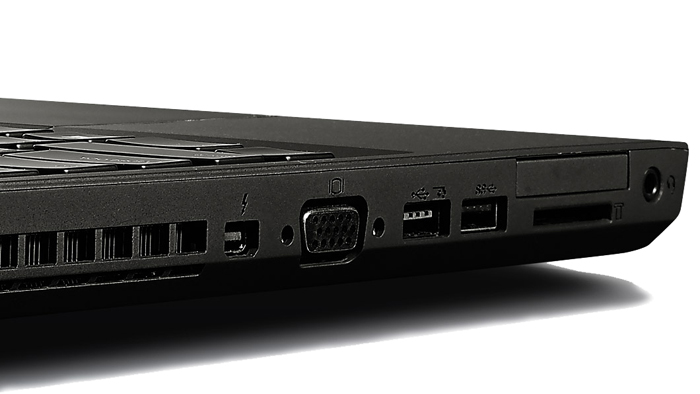

Left Ports Zoom View

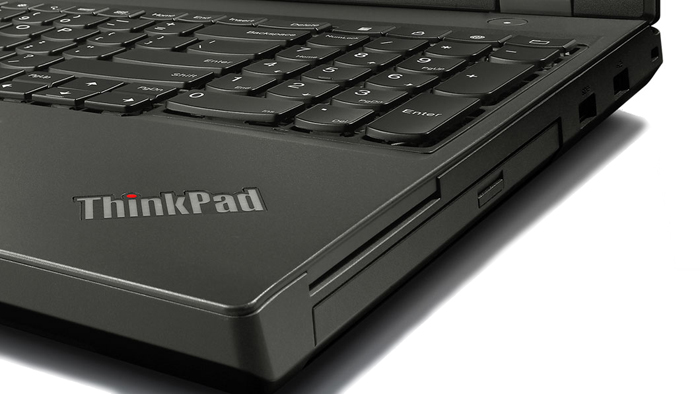

Right Driver/Ports Zoom View
|Lenovo ThinkPad W541 Laptop|
|Processor||Intel Core i7-4710MQ Processor
Intel Core i7-4810MQ Processor
Intel Core i7-4910MQ Processor
Intel Core i7-4940MX Processor Extreme Edition
|Operating System||Windows 8.1 Pro 64
Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8.1 Pro 64
|Graphics||NVIDIA Quadro K1100M 2GB
NVIDIA Quadro K2100M 2GB
|Memory||4 SODIMM Slots, 32GB max, 1600 MHz|
|Audio||Dolby Home Theater v4|
|Battery||6 cell (56 WHr)
9 cell (99 WHr)
Up to 1TB HDD with Bay Adapter
Up to 512GB SSD with Bay Adapter
|Media Card Reader||Integrated 4-in-1 SD card reader (SD, SD-HC, SDXC, MMC)|
|Color Sensor||X-rite Pantone - optional|
|Display||FHD – 1920 x 1080 – TN – 300 nits
3k – 2880 x 1620 – IPS – 350 nits
|Dimensions (W X D X H)||15.6" x 9.7" x 1.10-1.167.3"|
|Keyboard||ThinkPad Precision Keyboard with NumPad & Backlight|
|I/O (Input / Output ports)||(2) USB 3.0
(2) USB 2.0, 1 Always-on charging
(1) mDP + Thunderbolt 2.0
(1) RJ45 Gigabit Ethernet
(1) Docking connector
(1) Mic / Headphone Combo Jack
(1) Smart card reader - optional
(1) ExpressCard / 34 mm
|WLAN||Intel 7260 2x2 AC + Bluetooth 4.0
Intel 7260 2x2 b/g/n + Bluetooth 4.0
|Wireless WWAN||Integrated Mobile Broadband upgradable
Sierra Wireless 7355 - Gobi 5000
Download the Lenovo ThinkPad W541 Datasheet (PDF).
- Pricing and product availability subject to change without notice.
